GTM80: GTM80 , PAPER FILTER & MAG. SEPARATOR
GTM80: GTM80    , PAPER FILTER & MAG. SEPARATOR



Our Price: $3,980.00

Stock Status:(Out of Stock)
Part Number: GTM80
Qty:

Description


Description

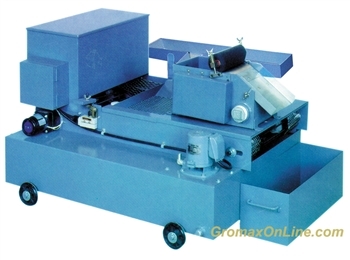

Paper Filter & Magnetic Separator (Capacity 160 Liter)

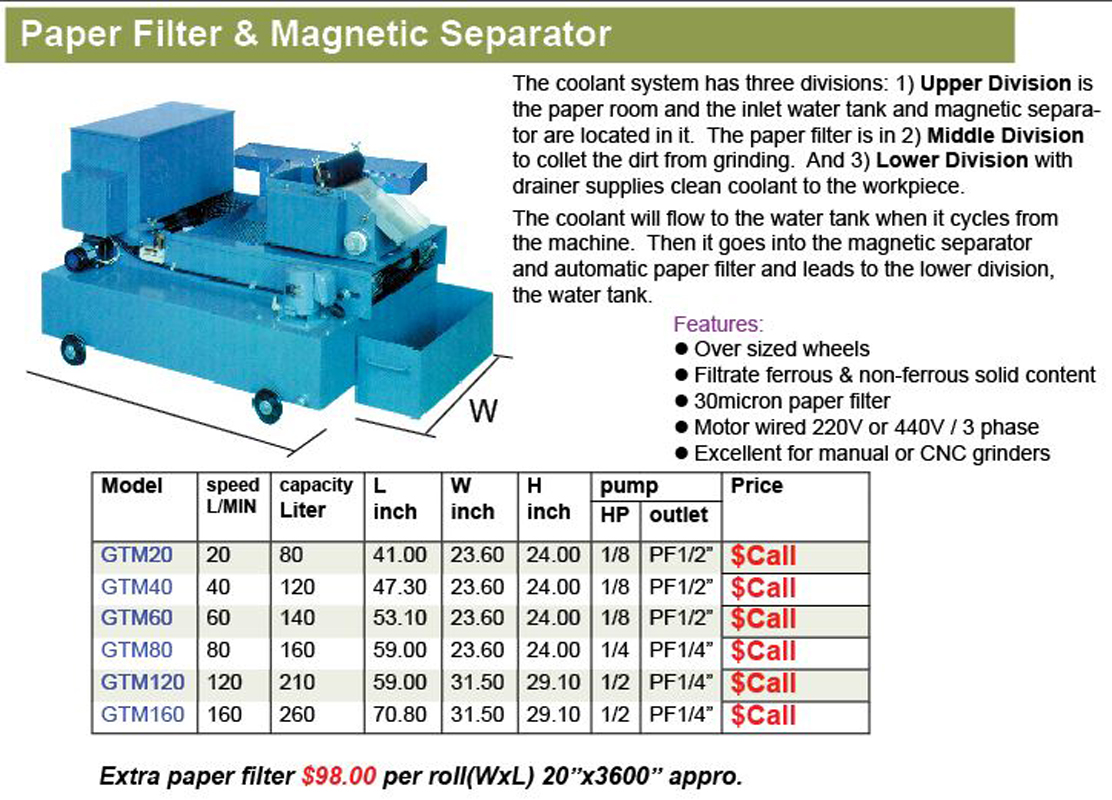

Paper Filter & Magnetic Separator

The coolant system has three divisions, the upper, the middle and the lower division:
1) Upper Division: is the paper room and the inlet water tank and magnetic separator are located in it. 2) Middle Division: the paper filter is in the middle division to collet the dirt from grinding. 3) Lower Division: with drainer supplies clean coolant to the workpiece.

The coolant will flow to the water tank when it cycles from the machine. Then it goes into the magnetic separator and automatic paper filter and leads to the lower division, the water tank.

Main Features

  • Over sized wheels
  • Filtrate ferrous & non- ferrous solid content
  • 30 micron paper filter
  • Motor wired 220V or 440V / 3 phase
  • Excellent for manual or CNC grinders

Part Number :GTM80


Speed L/Min80
Capacity: liter160
Pump: HP1/4
Pump: OutletPF 1/4"
Dimension (WxLxH)23.6x59x24 inch
