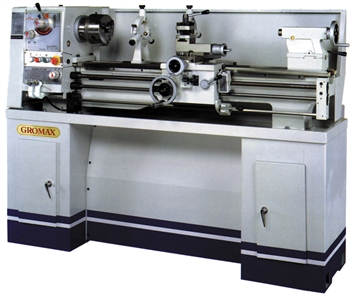

CT1440G: GROMAX Precision Gear Head Bench Lathe
CT1440G: GROMAX Precision Gear Head Bench Lathe

Our Price: $4,290.00


Part Number: CT1440G
Qty:

Description

Features:
  • Lathe bed is made of high tensile cast iron in rigid construction structure, the bedway is hardened and ground
  • The main spindle is equipped with 2 precision taper roller bearing
  • Provided 12 spindle speeds from 70 to 1350 rpm, change speed by means of lever
  • All gears head stock with oil immersed lubrication design, provide vibration-free and free V-belt replacement
  • 2HP motor
  • Manufacture design includes heavy duty floor stand along with full length splash guard as standard equipment
Specifications:
Swing over bed14"
Swing over cross slide8"
Distance between centers40"
Swing over gap207/8"
Width of gap77/8"
Length of bed64"
Width of bed75/32"
Hole through spindle11/2"
Tailstock spindle travel33/4"
Cross slide travel67/8"
Tool slide travel33/4"
Saddle travel351/4"
Taper of spindle taper of center Mores taperMT#5 D1-4
Tailstock taper of centerMT#3
Range of spindle speeds12 speeds 70~1350mm
Lead screw dia.7/8"
Feed rod dia.3/4"
Threads per inch of lead screw8 TPI
Thread can be cut4~112 TPI (50 kinds)
Main spindle motor2HP/1.5kw
Net weight950 Lbs.
