PFH450, PUNCH FORMER

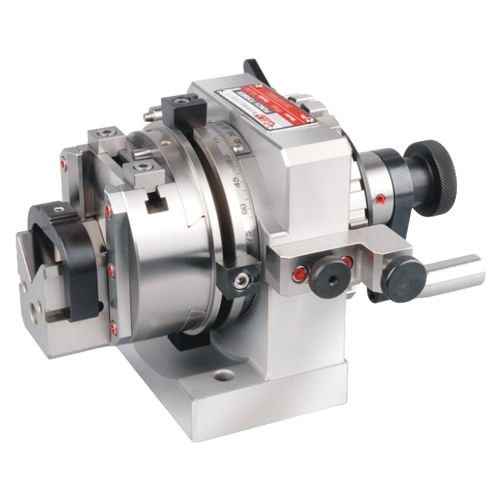

PFH450, PRECISION STAINLESS PUNCH FORMER

Our Price: $4,720.00

Stock Status:In stock

Availability:: Usually Ships in 4 to 6 Weeks
Part Number: PFH450
Qty:

Description

PRECISION STAINLESS PUNCH FORMER

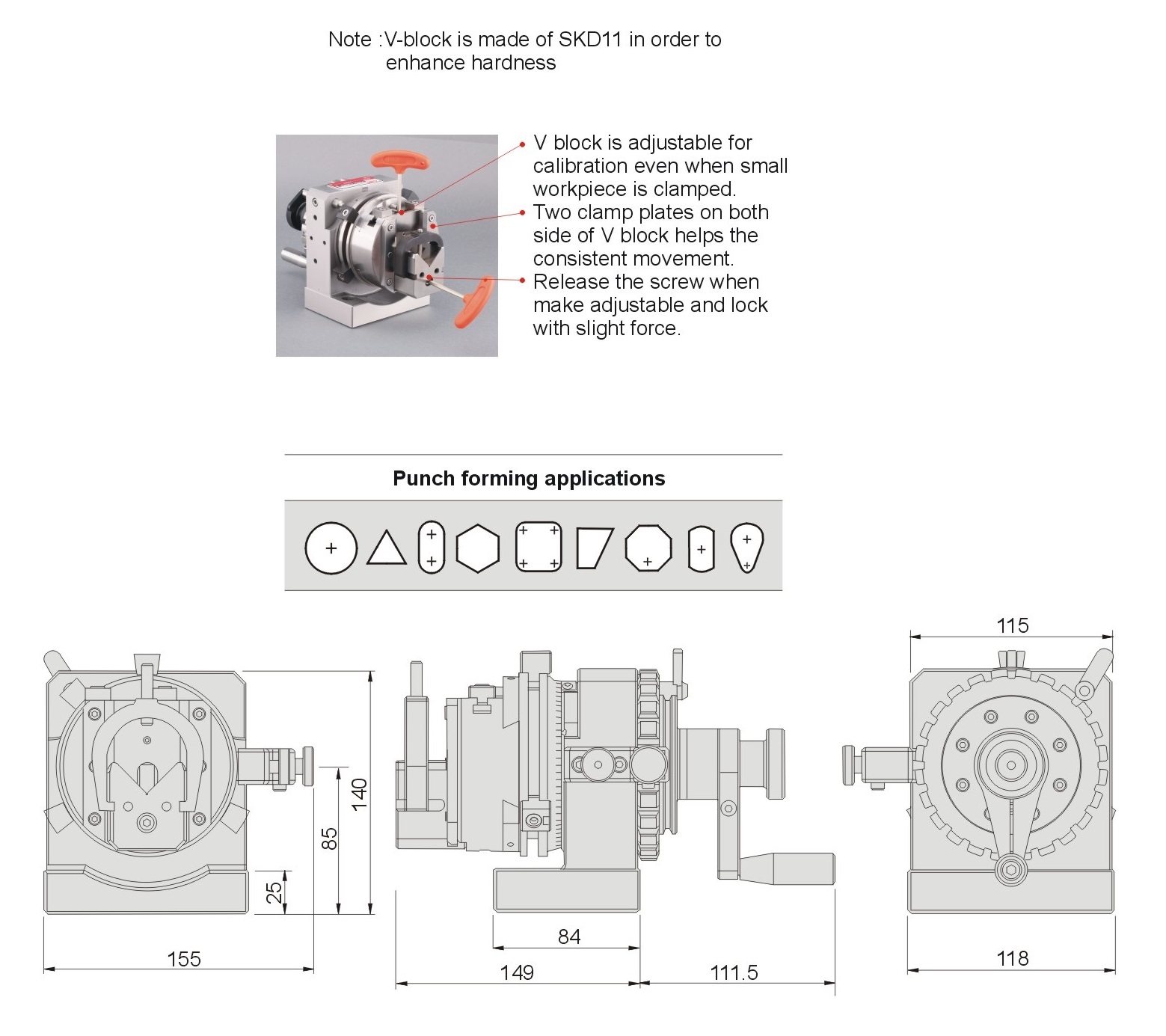

Main Parameters:
Center height��������������..85�0.5mm
Clamping dia. range of V-block����.� 3~38mm
Travel of V-block��������������...�38mm
Indexer Tooth QTY & accuracy..................... 24, 15 degree+/- 5"
Clamping accuracy (50mm) ��....���0.005 mm
Slide plate horizonal movement���...��18 mm
