RADIAL DRILL&MILL HOLDER RH, M=85mm
RADIAL DRILL&MILL HOLDER RH, M=85mm



Our Price: $2,150.00

Stock Status:In stock

Part Number: FR30MT2585
Qty:

Description


Description

R19 Radial MT Right D/M Forward Head (D=30, ER25)
R19 Radial Drilling & Milling Forward Head
Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2": Double Speed (DS)

Main Features

To be used for collet DIN6499
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation
External coolant supply
Collet is not included

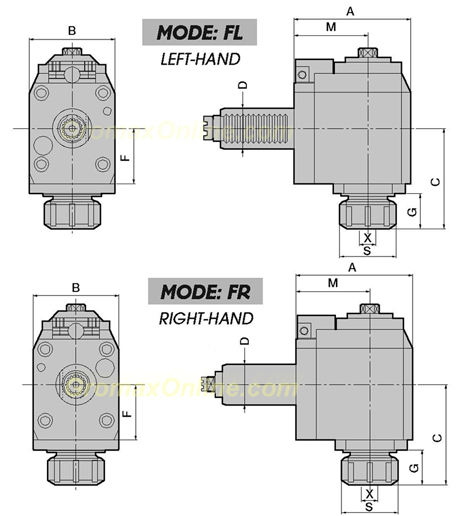

Part Number :FR30MT2585


D DIN6988030
X Capacity1-16/ER25
S42
Max rpm5000
i1:1
A117
B64
C74.5
F41
G26
M85
Old# Right-HandR1530MR2
Old# Left-HandR1530ML2
