FL40MT3265, RADIAL DRILL&MILL HOLDER LH
FL40MT3265, RADIAL DRILL&MILL HOLDER LH



Our Price: $2,450.00

Stock Status:(Out of Stock)

Part Number: FL40MT3265
Qty:

Description


Description

R19 Radial MT Left D/M Forward Head (D=40, ER32)
R19 Radial Drilling & Milling Forward Head
Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2": Double Speed (DS)

Main Features

To be used for collet DIN6499
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation
External coolant supply
Collet is not included

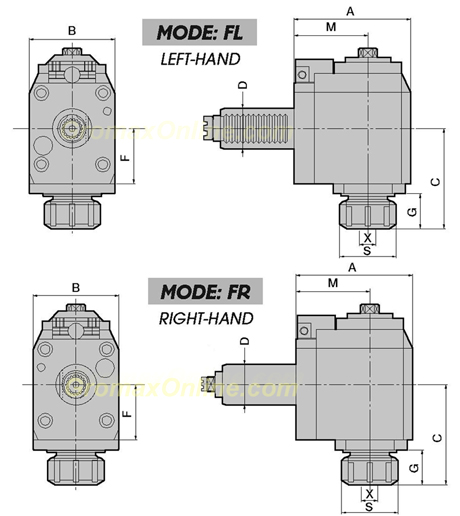

Part Number :FL40MT3265


D DIN6988040
X Capacity2-20/ER32
S50
Max rpm5000
i1:1
A99
B80
C71
F40
G23
M65
Old# Right-HandR1540MR1
Old# Left-HandR1540ML1
