AXIAL CUTTING HEAD TO DIN6358
AXIAL CUTTING HEAD TO DIN6358



Our Price: $1,500.00

Stock Status:(Out of Stock)

Part Number: DA30IT16C
Qty:

Description


Description

A23: Axial Cutting Head to DIN6358
A23 Axial Cutting Head to DIN 6358
Spur Coupling-IT (Duplomatic Type)

Main Features

To be used for cutter arbor according to DIN 6358
For Various Cutters
Complete with intermediate rings and coolant pipe

Part Number :DA30IT16C


Ref#DA30-IT-CUT

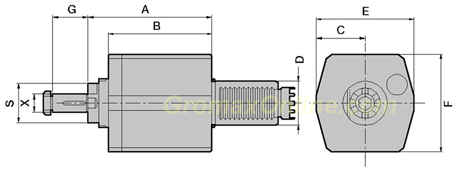

D DIN- 6988030
X Capacity DIN635816
S32
Max rpm3000
i1:1
A71
B55
C33
E66
F66
G27
