DA3054802529 WITH ER25 OFFSET
DA3054802529 WITH ER25 OFFSET



Our Price: $2,450.00

Stock Status:In stock

Part Number: DA3054802529
Qty:

Description


Description

A16 Axial 5480 D/M Hd Offset w/ Collet Chk (D=30, ER25)
A16 Axial Drilling & Milling Head Offset w/ collet Chuck
Coupling to DIN5480 (Sauter Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT); "*2": Double Speed (DS)

Main Features

To be used for cutter arbor according to DIN 6499
External coolant supply
Collet is not included

Part Number :DA3054802529


Ref#DA30-5480-OFF

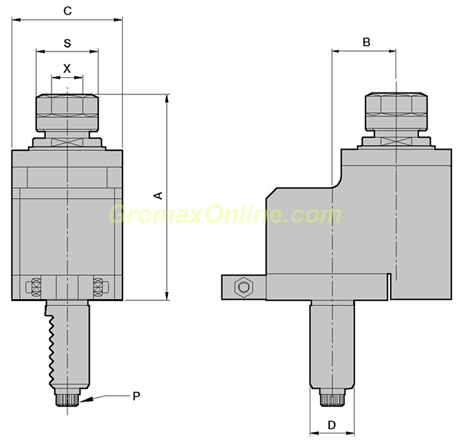

D DIN6988030
X Capacity1-16/ER25
S42
Max rpm4000
i1:1
A100
B29
C60
P DIN5480W16X0.8
