AXIAL DRILLING & MILLING HEAD W/ DOUBLE COLLETS, Y OFFSET
AXIAL DRILLING & MILLING HEAD W/ DOUBLE COLLETS, Y OFFSET



Our Price: $2,650.00

Stock Status:(Out of Stock)

Part Number: DA30548016DY
Qty:

Description


Description

A19 Axial 5480 D/M Head w/ Dbl Collets, Y Offset (D=30, ER16)
A19 Axial Drilling & Milling Head w/ Double Collets, Y Offset
Coupling to DIN5480 (Sauter Type)

Main Features

To be used for cutter arbor according to DIN 6499
External Coolant Supply
Collet is not included

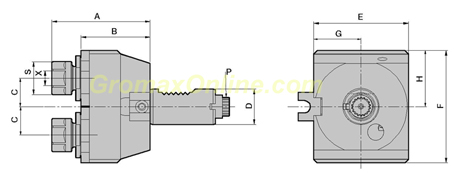

Part Number :DA30548016DY


D DIN6988030
X Capacity1-10/ER16
S32
Max rpm4000
i1:1
A83
B58.5
C24
E80
F95
G40
H47.5
P DIN5480W16X0.8
