BR60548250102 , RADIAL DRILL HOLDER RH
BR60548250102  , RADIAL DRILL HOLDER RH



Our Price: $4,600.00

Stock Status:(Out of Stock)

Part Number: BR60548250102
Qty:

Description


Description

R9 Radial 5482 Right D/M Backward Head (D=60, ER50)
R9 Radial Drilling & Milling Backward Head
Coupling to DIN5482 (Sauter Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2" Double Speed (DS)

Main Features

For Milling, Drilling Reaming.
To be used for Collet DIN 6499
For clockwise and counter-clockwise rotation.
External Coolant supply
Collet is not included
Max RPM: 5000

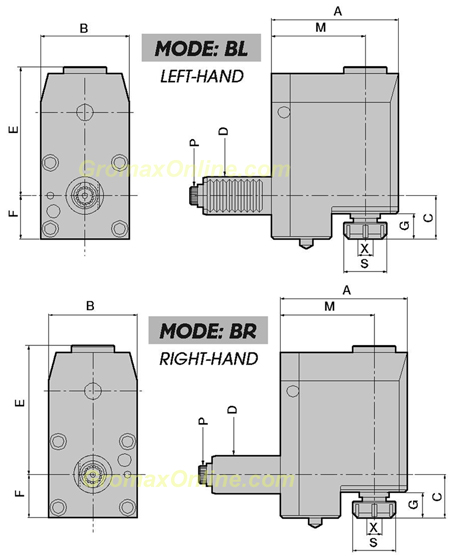

Part Number :BR60548250102


D DIN6988060
X Capacity10-34/ ER50
S78
Max rpm5000
i1:1
A147
B104
C83
E118
F54
G42
M102
P DIN5482B25X22
Max RPMR960BR1
Old# Left-HandR960BL1
