R1150MR1 , RADIAL DRILL HOLDER RH
R1150MR1 , RADIAL DRILL HOLDER RH



Our Price: $3,300.00

Stock Status:In stock

Part Number: BR50MT4090
Qty:

Description


Description

R18 Radial MT Right D/M Backward Head (D=50, ER40)
R18 Radial Drilling & Milling Backward Head
Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT)

Main Features

For Milling, Drilling Reaming.
To be used for Collet DIN 6499
For clockwise and counter-clockwise rotation.
External Coolant supply
Collet is not included

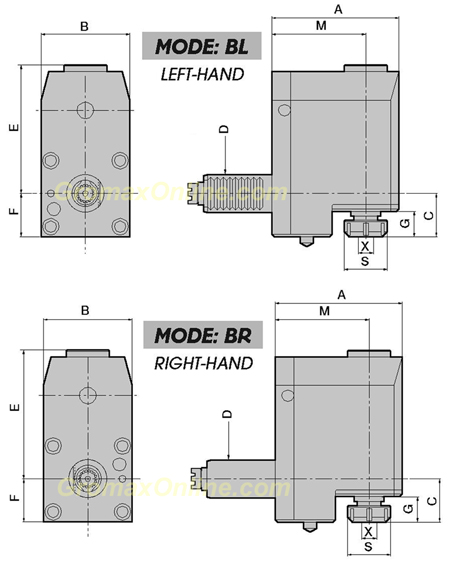

Part Number :BR50MT4090


D DIN6988050
X Capacity3-26/ ER40
S63
Max rpm5000
i1:1
A129
B86
C49
E112
F45
G39
M90
Old# Right-HandR1150MR1
Old# Left-HandR1150ML1
