R1130MR1 , RADIAL DRILL HOLDER RH
R1130MR1 , RADIAL DRILL HOLDER RH



Our Price: $2,650.00

Stock Status:In stock

Part Number: BR30MT2569
Qty:

Description


Description

R18 Radial MT Right D/M Backward Head (D=30, ER25)
R18 Radial Drilling & Milling Backward Head
Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT)

Main Features

For Milling, Drilling Reaming.
To be used for Collet DIN 6499
For clockwise and counter-clockwise rotation.
External Coolant supply
Collet is not included

Part Number :BR30MT2569

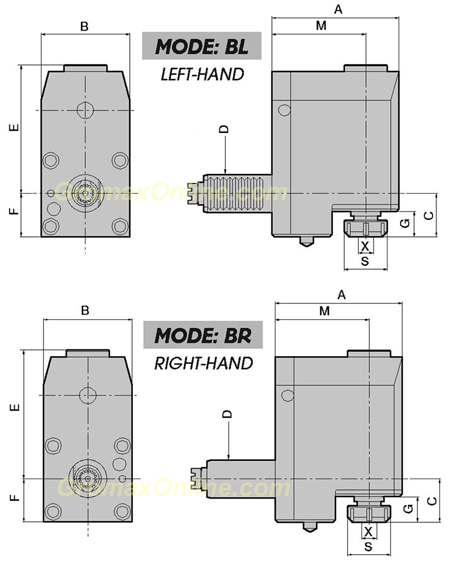

D DIN6988030
X Capacity1-16/ ER25
S42
Max rpm5000
i1:1
A95
B60
C42
E76
F32
G29
M69
Old# Right-HandR1130MR1
Old# Left-HandR1130ML1
