R1540IR1 , RADIAL DRILL&MILL HOLDER RH, DFRR40-IT-ER32
R1540IR1 , RADIAL DRILL&MILL HOLDER RH, DFRR40-IT-ER32



Our Price: $2,200.00

Stock Status:(Out of Stock)

Part Number: FR40IT3285
Qty:

Description


Description

R15: Radial Drilling/Milling Forward Head
R15 Radial Drilling & Milling Forward Head
Spur Coupling-IT (Duplomatic Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2": Double Speed (DS)

Main Features

To be used for collet DIN6499
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation
External coolant supply
Collet is not included

Part Number :FR40IT3285

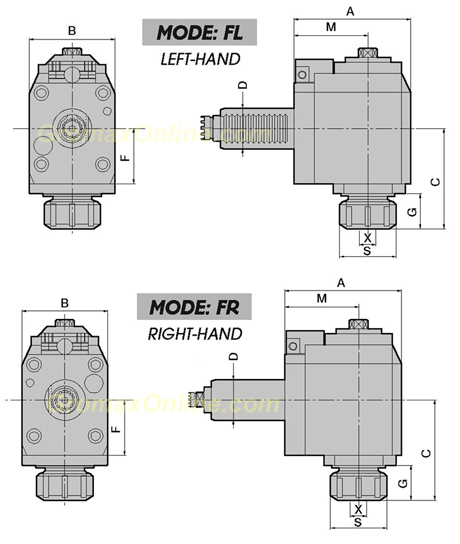

D DIN6988040
X Capacity2-20/ER32
S50
Max rpm5000
i1:1
A119
B80
C71
F40
G23
M85
Old# Right-HandR1540IR2
Old# Left-HandR1540IL2
