FR3054822565: R1330BR1 , RADIAL DRILL&MILL HOLDER R H
FR3054822565: R1330BR1 , RADIAL DRILL&MILL HOLDER R H



Our Price: $1,390.00

Stock Status:In stock

Part Number: FR3054822565
Qty:

Description


Description

R13 Radial 5482 Right D/M Forward Head (D=30, ER25)
R13 Radial Drilling & Milling Forward Head
Coupling to DIN54820 (Sauter Type)
Model# with "K": Internal Coolant (IC), "/2": Double Torque (DT), "*2": Double Speed (DS)

Main Features

To be used for collet DIN6499
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation
External coolant supply
Collet is not included

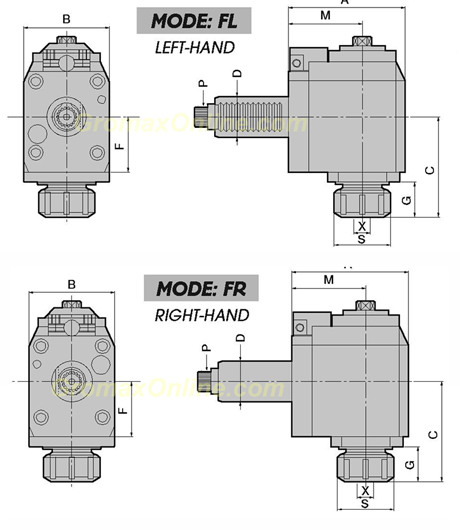

Part Number :FR3054822565


D DIN6988030
X Capacity1-16/ER25
S42
Max rpm5000
i1:1
A97
B64
C74.5
F41
G26
M65
P DIN5482B15X12
Old# Right-HandR1330BR1
Old# Left-HandR1330BL1
